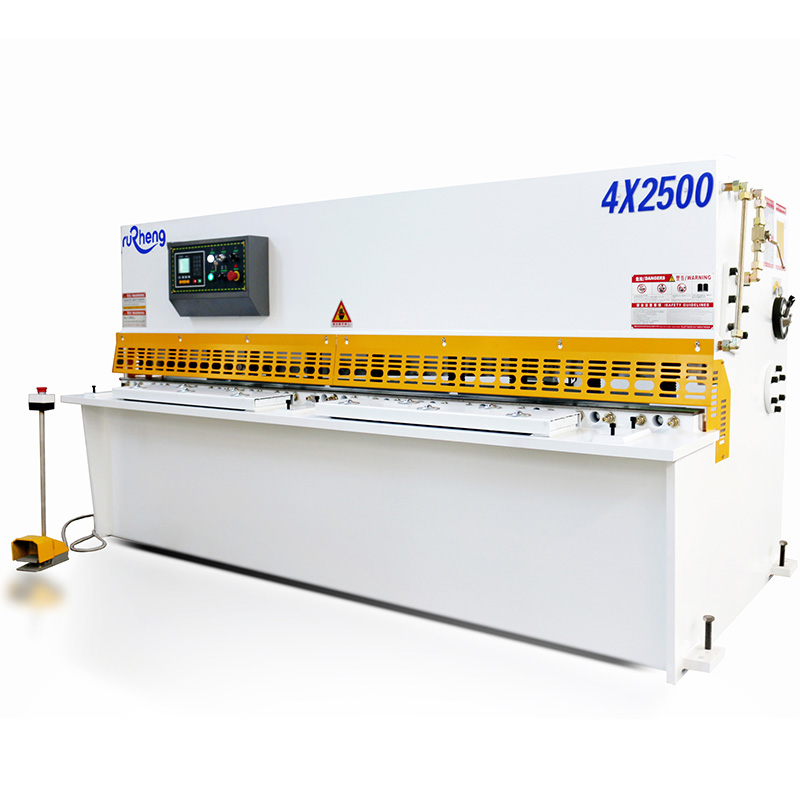

Featuring an innovative swinging blade design with arc-shaped cutting motion, our hydraulic swing beam shearing machine delivers efficient and precise sheet metal cutting with a compact footprint and exceptional stability.
Advanced hydraulic swing beam shearing machine with NC control and precision cutting
Discover the key advantages that make our hydraulic swing beam shearing machine the preferred choice for sheet metal processing
Fast working speed and smooth cutting action ensure maximum productivity with minimal downtime
Intuitive controls and straightforward setup reduce training time and make operation easy for all skill levels
Swing arm design provides superior stability during cutting operations, ensuring consistent quality
Space-saving design ideal for facilities with limited floor space while maintaining full functionality
Comprehensive safety systems including guards and emergency stops ensure operator protection
Economical solution for cutting thin to medium thickness materials with excellent performance-to-price ratio
Better understand the machine performance through detailed component descriptions and technical features

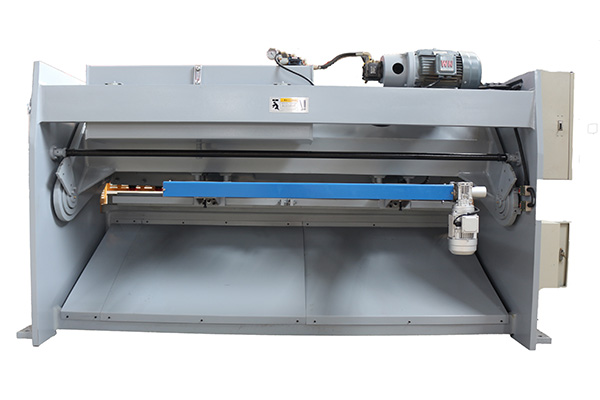

The machine frame is constructed from high-quality steel with a welded structure design. The compact and simple pendulum arm mechanism provides excellent rigidity and stability, ensuring straight and accurate cuts throughout the machine's operational life.

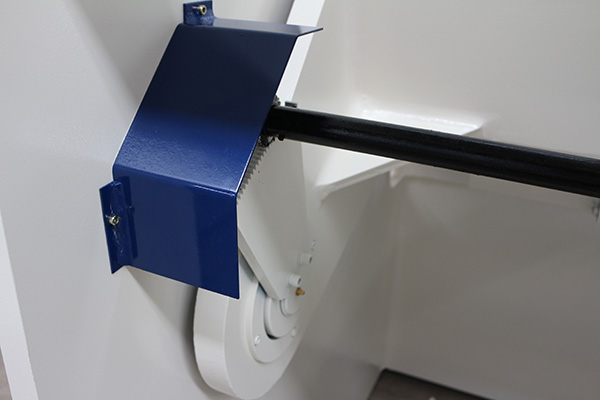

The innovative swinging blade design creates an arc-shaped cutting motion that ensures material straightness and clean cuts. This mechanism provides fast working speed with good stability, ideal for processing thin to medium thickness materials efficiently.

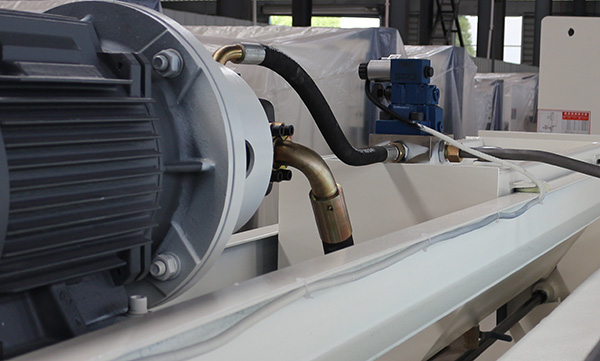

Equipped with high-quality hydraulic components, the system provides stable and reliable cutting force. The hydraulic drive ensures smooth operation with low noise levels and excellent energy efficiency. Built-in oil cooling system maintains optimal operating temperature.

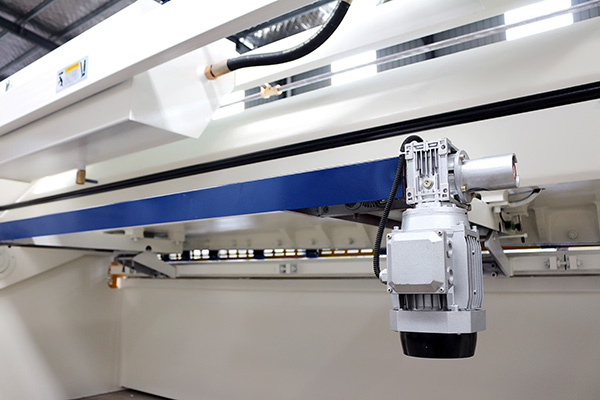

The motorized ball screw back gauge provides precise positioning with extended travel distance options. NC controller allows for programmable movements and automatic positioning, significantly improving efficiency and accuracy for repetitive cutting operations.

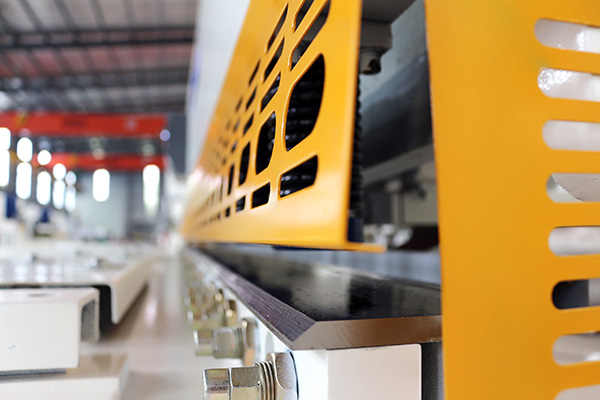

High-quality tool steel blades with four usable cutting edges provide long service life and consistent cutting quality. Manual single-point blade gap adjustment allows for optimization based on material thickness, ensuring clean cuts with minimal burr formation.
Our swing beam shearing machines are widely used across various industries for precision metal cutting
Precision cutting of steel, stainless steel, and aluminum sheets for various fabrication needs
Manufacturing of body panels, brackets, and structural components with clean edges
Cutting metal sheets for roofing, siding, and structural steel components
Processing ductwork, ventilation panels, and air conditioning components
Manufacturing cabinet panels, server racks, and control panel housings
Cutting metal parts for industrial equipment, machine guards, and custom components
Processing metal furniture components, cabinets, and decorative panels
Cutting steel plates for hull construction, bulkheads, and marine structures
Customize your machine with standard features and optional upgrades to meet your specific requirements
Need help choosing the right configuration?
Contact Our ExpertsCommon questions about our hydraulic swing beam shearing machines
Still have questions?
Contact our support team βGet detailed technical specifications, dimensions, and performance data for our hydraulic swing beam shearing machines. Download our comprehensive product brochure in PDF format.
