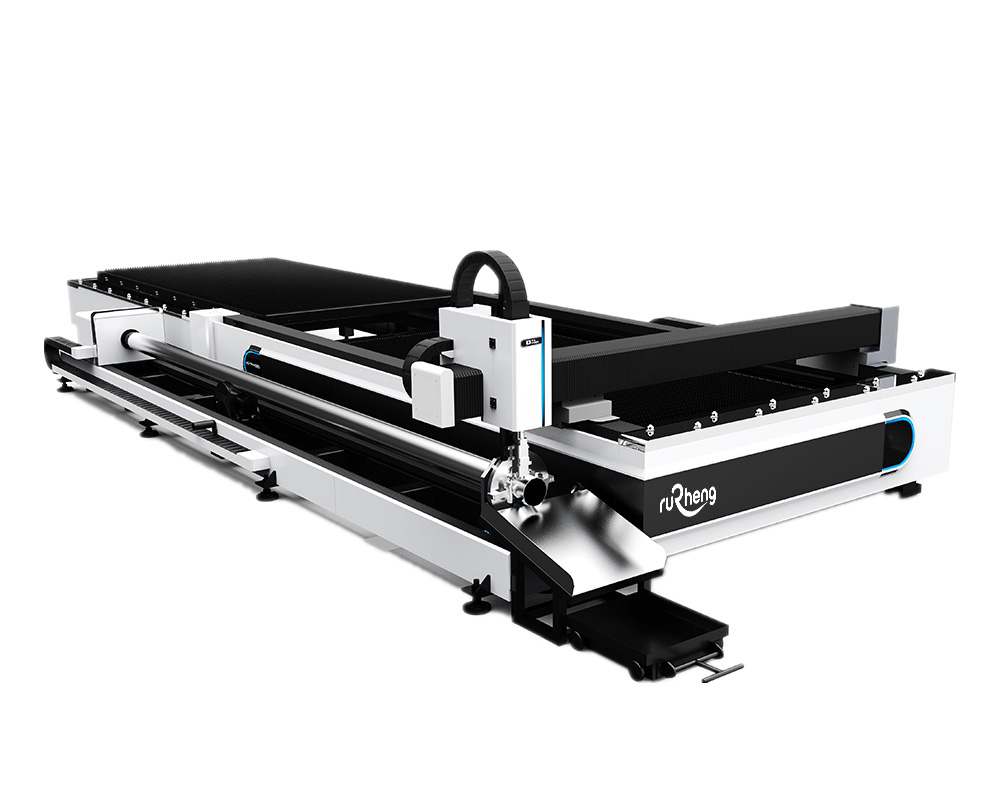

Plate and Tube Integrated Laser Cutting Machine

Plate Cutting Capacity

• Laser Power: Multiple power options
• Working Area: Customizable dimensions
• Max Thickness: Various thicknesses
• Positioning Accuracy: High precision

Tube Cutting Capacity

• Tube Diameter: Customizable tube diameter
• Max Tube Length: Customizable length
• Shapes: Round, Square, Rectangle
• Wall Thickness: Various wall thickness

System Features

• rapid exchange platform
• Auto-focus cutting head
• Four-chuck tube clamping
• CNC control system

Dual Functionality

One machine handles both plate and tube cutting, eliminating the need for separate equipment and maximizing workshop versatility

Quick Mode Switching

10-second exchange platform allows seamless transition between plate and tube cutting modes for uninterrupted production

Space Efficiency

Reduces factory footprint by 50% compared to separate machines, freeing up valuable production space for other operations

Cost Savings

Invest in one machine instead of two, reducing capital costs, maintenance expenses, and operating overhead significantly

High Precision

Positioning accuracy of High precision for both plates and tubes ensures consistent quality across all cutting operations

Improved Efficiency

Process diverse projects without machine changeover, reducing downtime and increasing overall production throughput

Automotive Manufacturing

Cutting chassis plates, structural tubes, exhaust pipes, and brackets in one integrated production line

Furniture Industry

Manufacturing both sheet metal panels and tubular frames for office furniture, shelving systems, and decorative items

Construction Equipment

Processing both structural steel plates and tubular supports for heavy machinery and construction equipment

Fitness Equipment

Cutting tubular frames and sheet metal covers for gym equipment, exercise machines, and weight training apparatus

Metal Fabrication Shops

Job shops requiring flexibility to process diverse customer orders involving both plates and tubes

Agricultural Machinery

Manufacturing both sheet metal body panels and tubular structural frames for tractors and farm equipment

HVAC Systems

Cutting ductwork panels and ventilation tubes for heating, ventilation, and air conditioning systems

Steel Structure Buildings

Processing both structural steel plates and tubular columns for prefabricated building construction

• ● Fiber laser source (Raycus/IPG)
• ● 10-second exchange platform system
• ● Dual-mode CNC control (CypCut/Raytools)
• ● Universal auto-focus cutting head
• ● Four-chuck pneumatic clamping (tube mode)
• ● Servo motor drive system
• ● Capacitive height sensor
• ● Industrial water chiller system
• ● Integrated dust extraction system
• ● Safety enclosure and interlock system

• ● Higher power laser source options
• ● Larger plate working area (larger dimensions available)
• ● Extended tube capacity (larger diameter options)
• ● Automatic tube feeding system
• ● Premium IPG laser source
• ● Automatic nesting software (dual mode)
• ● Bevel cutting capability
• ● Extended warranty packages
• ● Nitrogen generator system
• ● On-site installation and training

Q:How does the 10-second exchange platform work?

The exchange platform uses an automated quick-change system with precision positioning. Simply select the desired mode (plate or tube) on the control panel, and the machine automatically releases the current platform and guides the operator to install the correct one. Built-in sensors verify proper alignment and installation before allowing cutting operations to begin. The entire process takes approximately 10 seconds.

Q:Is cutting quality the same in both modes?

Yes, cutting quality is identical in both modes. The machine uses the same fiber laser source, cutting head, and control system for both applications. The CNC system automatically optimizes parameters for each mode. Positioning accuracy remains High precision for both plate and tube cutting, ensuring consistent precision across all operations.

Q:What are the cost savings compared to buying two separate machines?

The integrated machine typically costs 30-40% less than purchasing separate plate and tube cutting machines. Additional savings include: reduced maintenance costs (one laser source instead of two), lower utility expenses, reduced floor space requirements (saving rental costs), and simplified operator training. Most customers see ROI within 18-24 months compared to buying two separate systems.

Q:Can I process both plates and tubes in the same production run?

Absolutely! The quick exchange platform makes it practical to switch between modes multiple times per day. Many customers batch similar cuts together to minimize platform changes, but the flexibility allows you to switch modes as needed. The 10-second exchange time means you can efficiently handle mixed production orders without significant downtime.

Q:What space is required for installation?

The integrated machine requires approximately 50% less floor space than separate plate and tube machines. Standard configuration needs about 8m x 4m including operator access areas. This compact footprint makes it ideal for workshops with limited space. Additional area is needed for auxiliary equipment like chillers and dust extractors, which are shared between both modes.

Q:Is operator training more complex for the integrated machine?

Training is actually simplified because operators learn one control system for both functions. The interface is intuitive with clear mode selection and automatic parameter switching. Most operators become proficient in both modes within 3-5 days of training. The unified control system means operators don't need to learn two different machines, reducing the overall training burden.

Download Technical Brochure

Get detailed technical specifications, dimensions, and performance data for our integrated plate and tube laser cutting machines. Download our comprehensive product brochure in PDF format.
