Advanced dual press brake system for extra-long workpiece bending. Two synchronized CNC press brakes working in perfect coordination to handle oversized parts that exceed the capacity of single machines. Ideal for aerospace, shipbuilding, and large-scale fabrication projects.
Dual synchronized press brake system for extra-long workpiece bending applications
Discover the unique advantages of our tandem press brake system for handling oversized workpieces
Handle extra-long workpieces with synchronized dual-machine operation for applications beyond standard capacity
Advanced CNC coordination ensures both machines work in perfect harmony
Maintains exceptional accuracy across the entire bending length for consistent quality
Can operate independently or synchronized based on workpiece requirements
Double the bending force for heavy-duty applications and thick materials
Integrated safety systems with emergency stop coordination for operator protection
Understanding the advanced technology behind our tandem press brake synchronization system

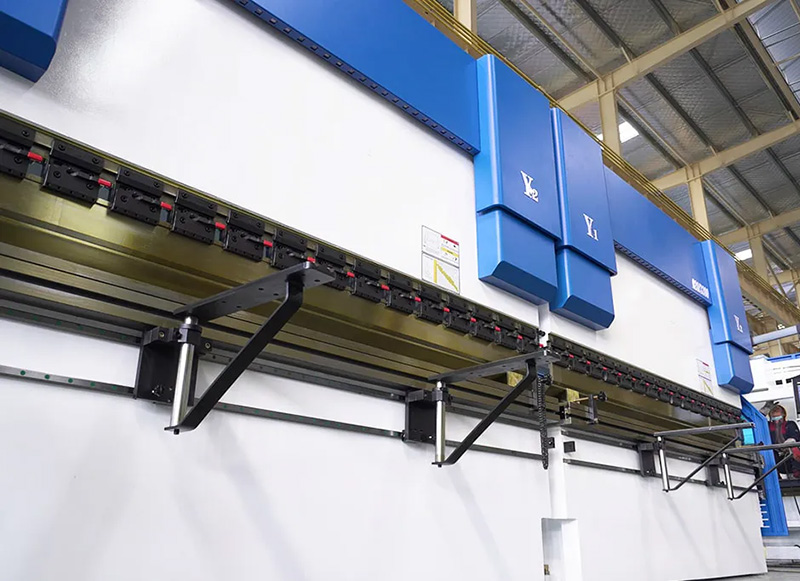

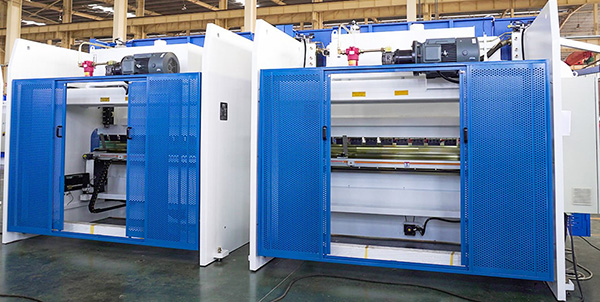

Two high-precision CNC press brakes positioned in-line and connected through advanced communication systems. Each machine maintains its own structural integrity while working in perfect coordination with its partner, enabling the bending of workpieces up to 6 meters or longer.
Advanced CNC coordination where one machine acts as the master controller, coordinating all movements with the slave machine. Real-time communication ensures microsecond-level synchronization, preventing any misalignment during the bending process. Both controllers can display the same program and status.

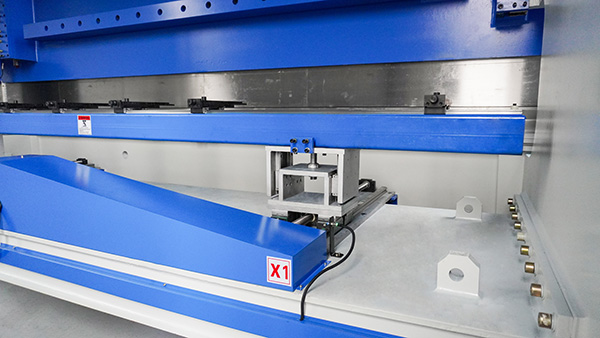

Multi-axis back gauge systems on both machines communicate and coordinate their positioning. Networked control ensures that both back gauges move to identical positions simultaneously, maintaining perfect workpiece alignment across the entire length. Features automatic error detection and correction.

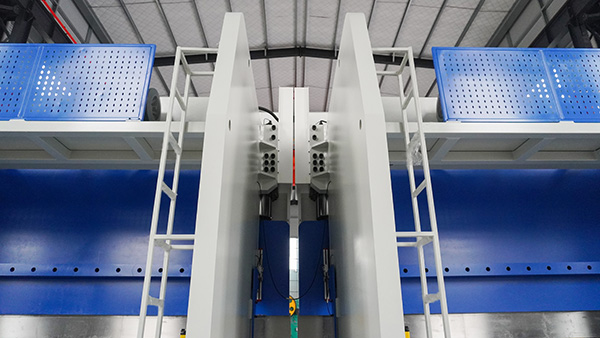

Dedicated high-speed network connection between the two machines enables real-time data exchange. Continuously monitors position, speed, force, and angle, making instant adjustments to maintain synchronization. Includes redundant communication paths for fail-safe operation.

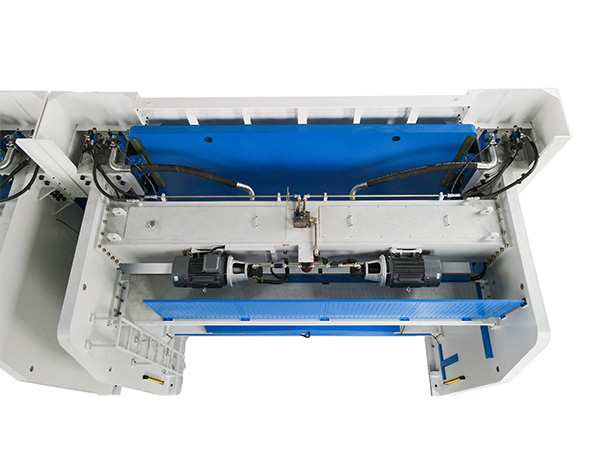

Each machine has its own independent hydraulic system, but both are coordinated through the master control. Pressure and speed are synchronized to ensure uniform bending force distribution across the entire workpiece length. Advanced servo valves provide precise control and instant response.
Advanced CNC crowning compensation system automatically adjusts for beam deflection across the extended working length. The system calculates optimal crowning values based on material thickness, length, and bending force, ensuring consistent bend angles from end to end. With four cylinders working in coordination, the crowning system maintains perfect straightness even when processing extra-long workpieces, eliminating the common problem of center deflection.
Tandem press brake systems excel in industries requiring extra-long workpiece bending
Wing components, fuselage panels, and large structural parts requiring precise bending
Hull plates, deck sections, and marine structural components
Long steel beams, girders, and structural bridge elements
Wind tower sections and large-scale renewable energy components
Train car bodies, chassis frames, and railway infrastructure
Large machinery frames, excavator arms, and industrial equipment
Large facade panels, canopies, and architectural steel elements
Large storage tanks, pressure vessels, and container manufacturing
Comprehensive standard features and customization options for your tandem press brake system
Need a custom tandem configuration?
Contact Our EngineersCommon questions about tandem press brake systems
Have specific technical questions?
Speak with our engineering team βGet comprehensive technical information about our tandem press brake systems, including synchronization technology, specifications, and application examples in PDF format.
